SCX24-01-KY1569 MEUS Racing Plastic Nylon Isokinetic 3-Section CVD Front Rear Axles Maximum Steering Angle 52° +5MM for SCX24 Deadbolt C10 JLU Gladiator Bronco - Front & Rear axles
SCX24-01-KY1569 MEUS Racing Plastic Nylon Isokinetic 3-Section CVD Front Rear Axles Maximum Steering Angle 52° +5MM for SCX24 Deadbolt C10 JLU Gladiator Bronco - Front & Rear axles
Regular price
$59.99 USD
Regular price
Sale price
$59.99 USD
Unit price
per
Shipping calculated at checkout.
MEUS Racing Isokinetic 3-Section CVD Front and Rear Axles Maximum Steering Angle 52° Wider +5MM for Axial SCX24 Deadbolt C10 JLU Gladiator Bronco 1/24 RC Crawler Upgrade Parts.

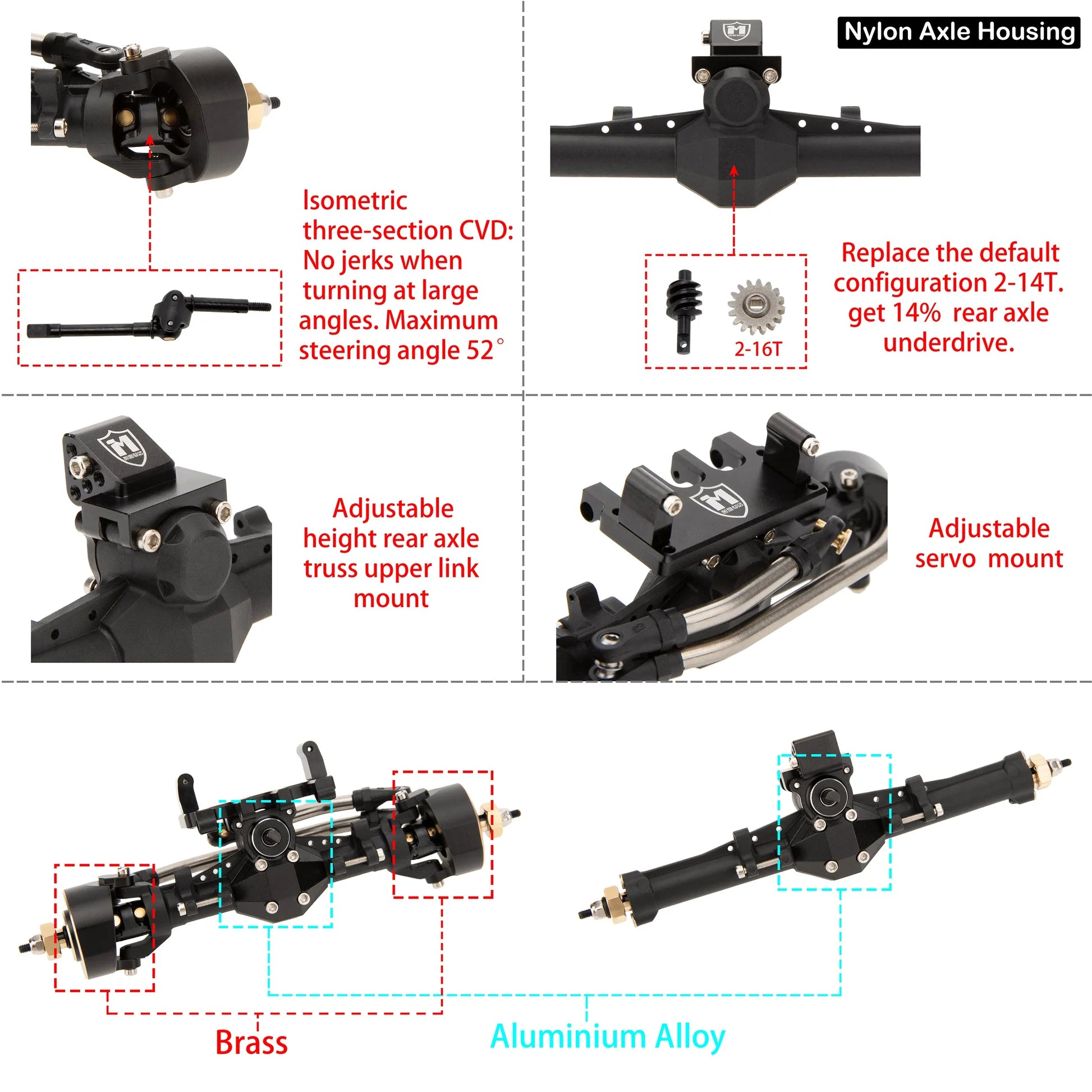

Features

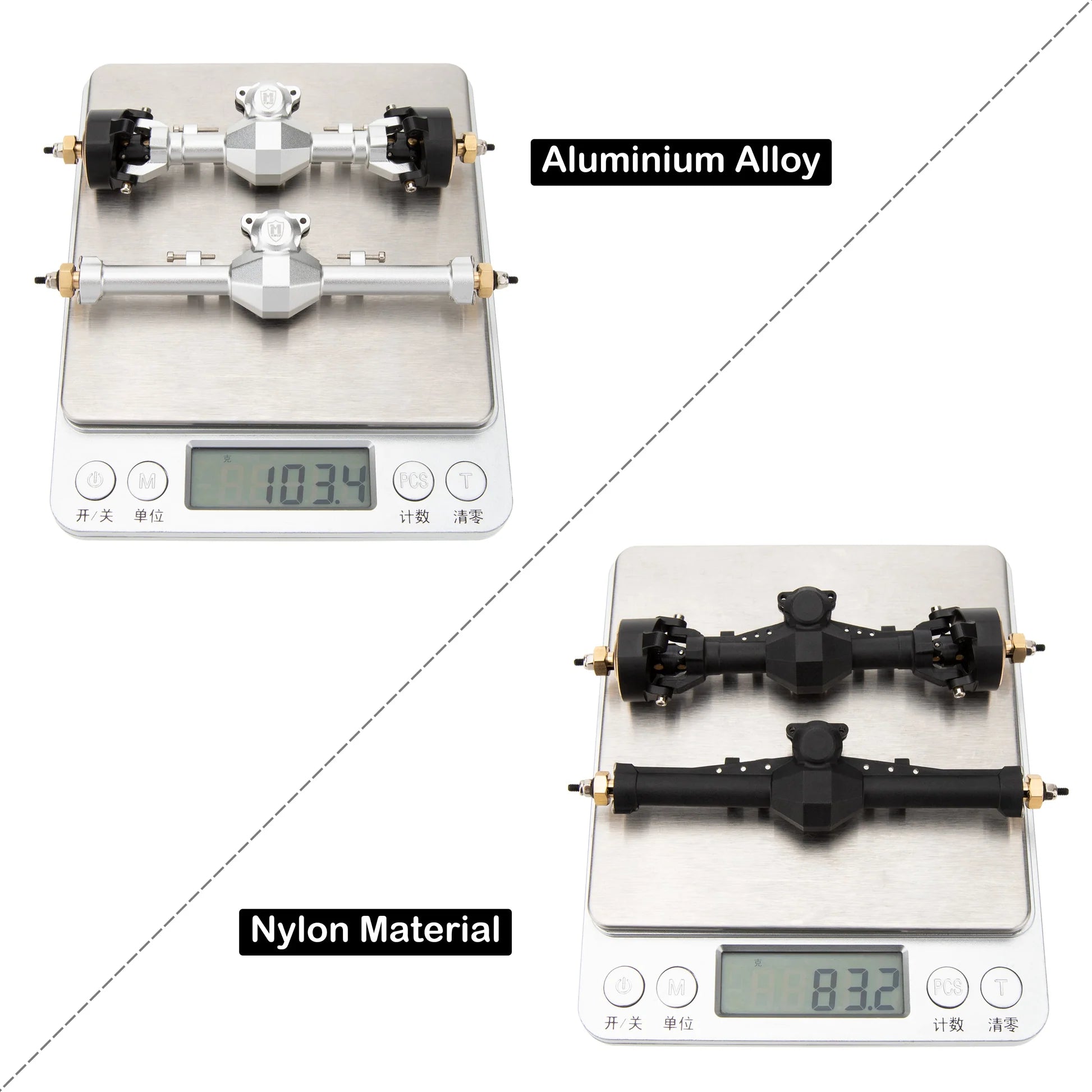

- 1. Made of aluminum alloy and brass. Surface anodized. Front axle 85G, rear axle 35G.
- 2. lsometric three-section CVD: No jerks when turning at large angles. Maximum steering angle 52°.
- 3. The Front axle has customized 2-14T gears. Rear axle with custom 2-14T gears. The rear axle can be replaced with supplied 2-16T gears for 14% overdrive.
- 4. Support high torque adjustable servo mount, adjustable height rear axle truss upper link mount—diamond cut surface differential case.
Note: The front axle uses custom 2-14T gears that do not work with stock and aftermarket gears. The rear axle uses a 2-14T gear with both stock and aftermarket gears. The 2-16T gears included in the package can only be installed on the rear axle.

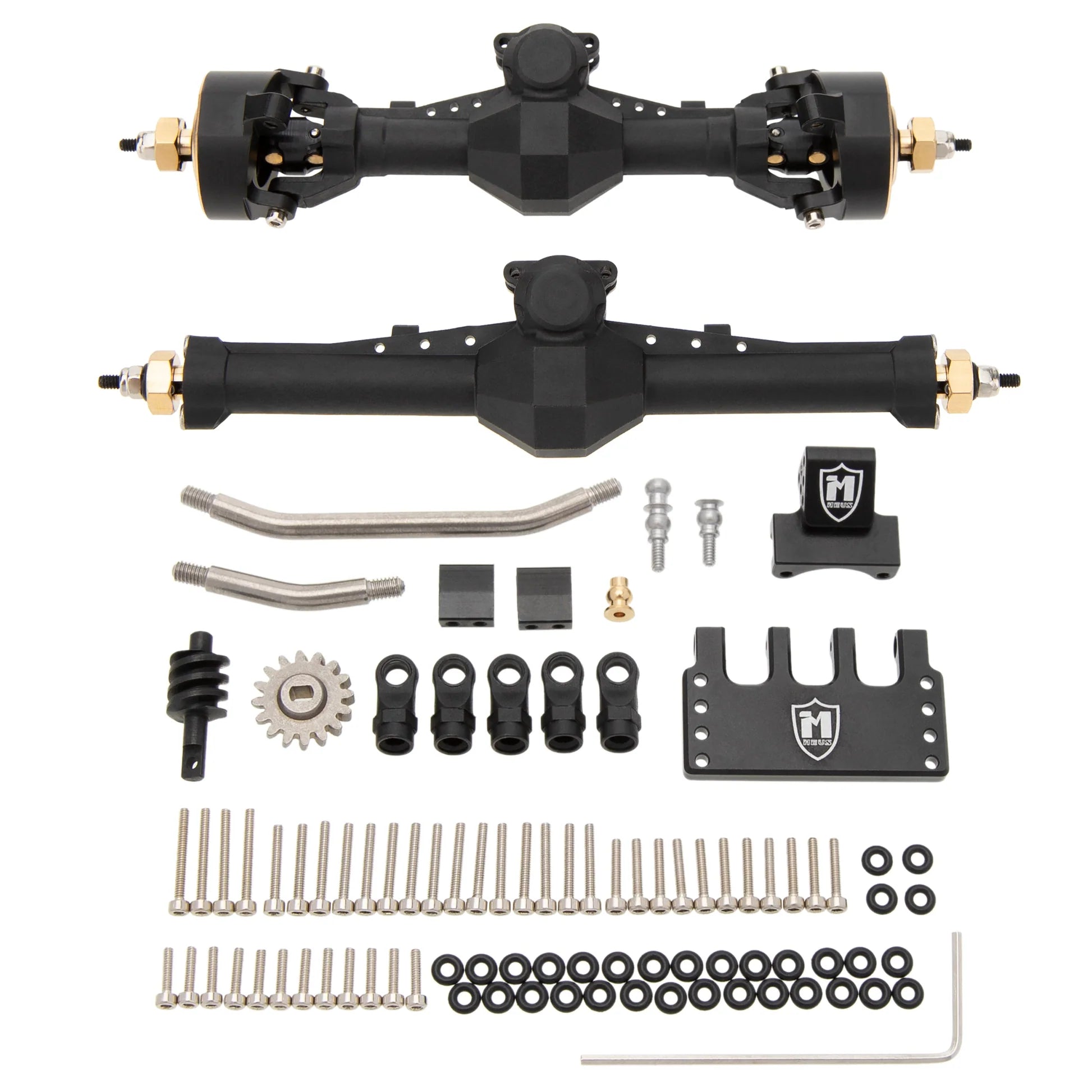

Package List
1× front axle
1×rear axle
Note: Different options are different products, if you order one option, the package doesn't include other options on this product link.

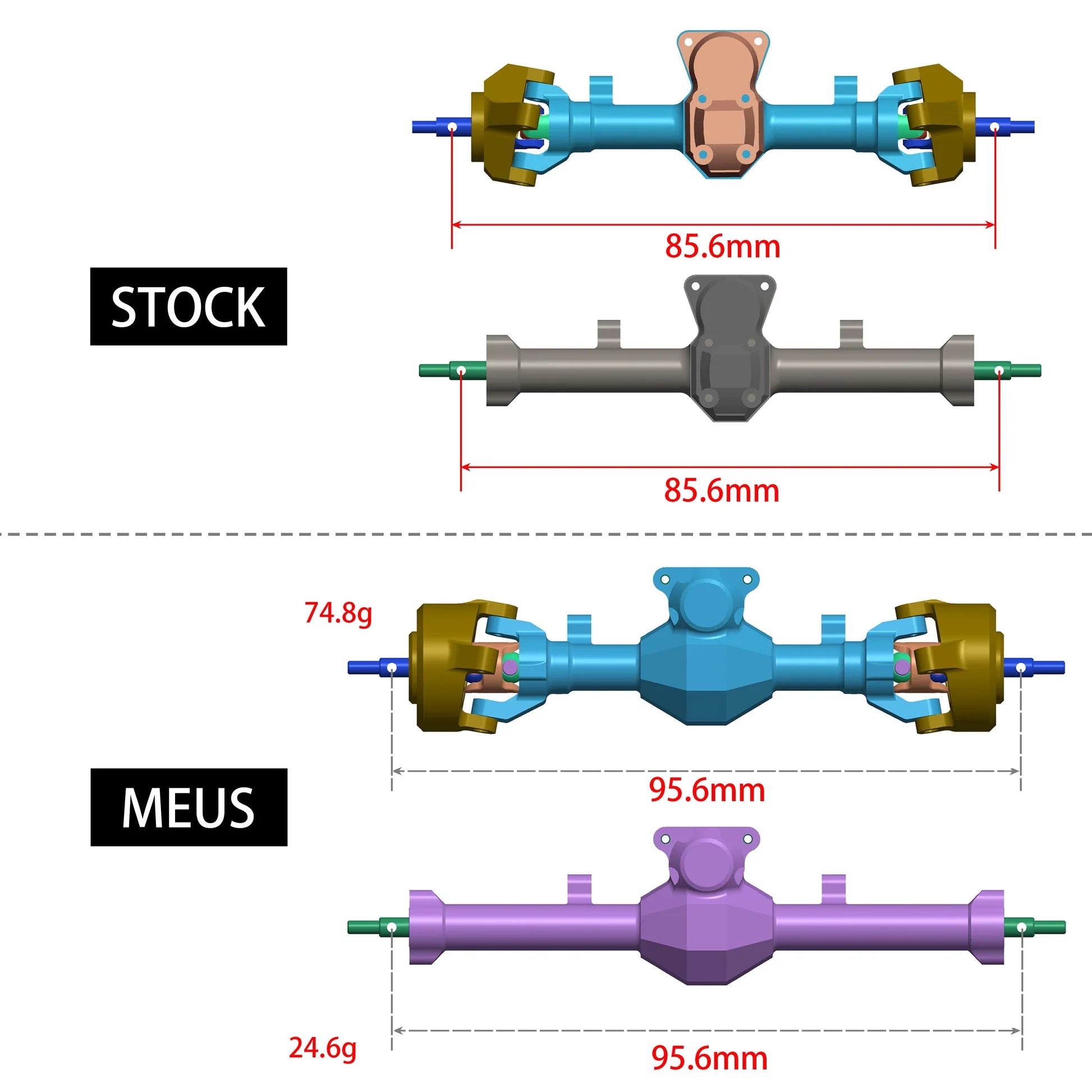

3D installation drawing of Isokinetic 3-Section CVD Front and Rear Axles
