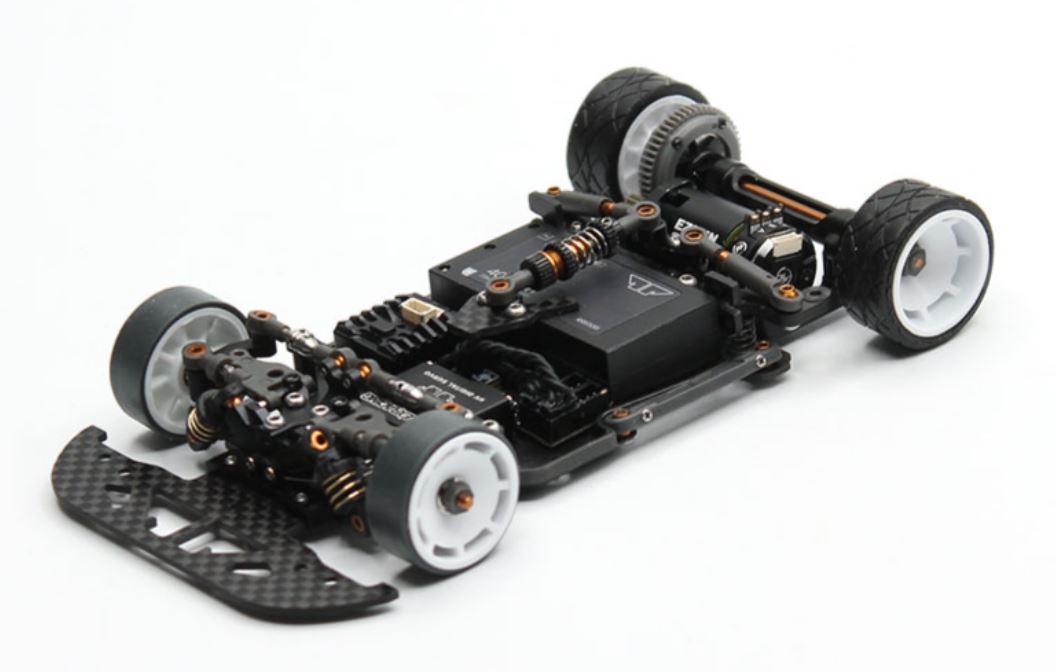

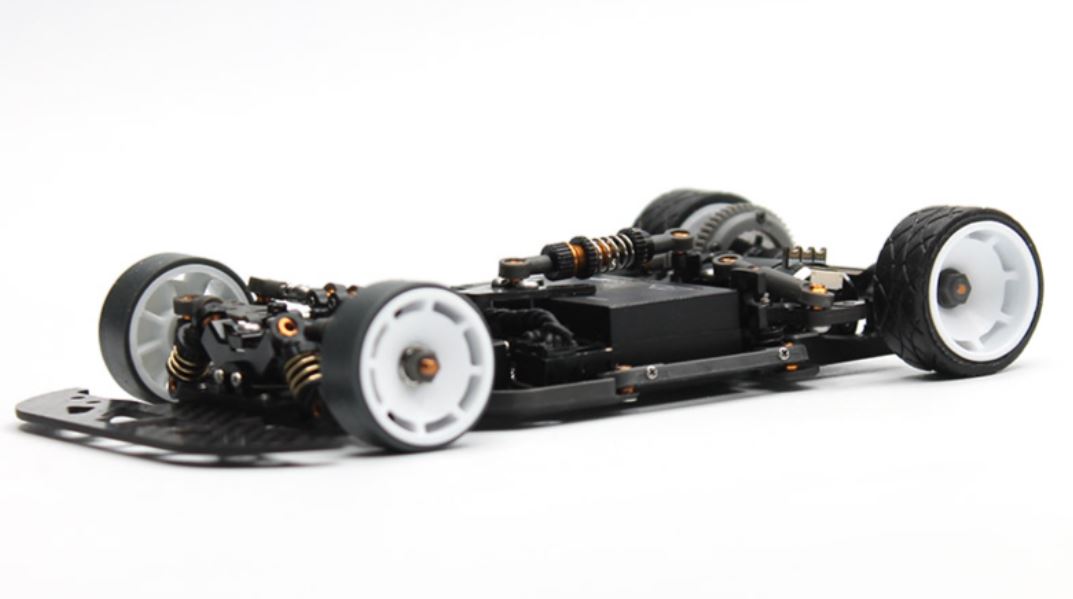

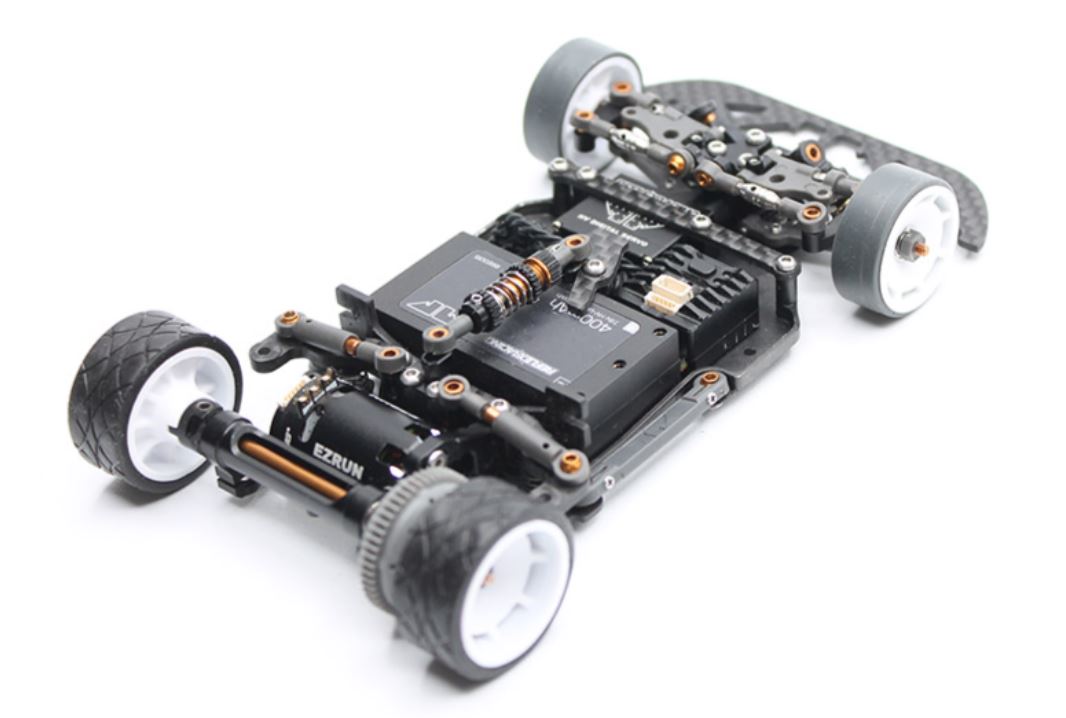

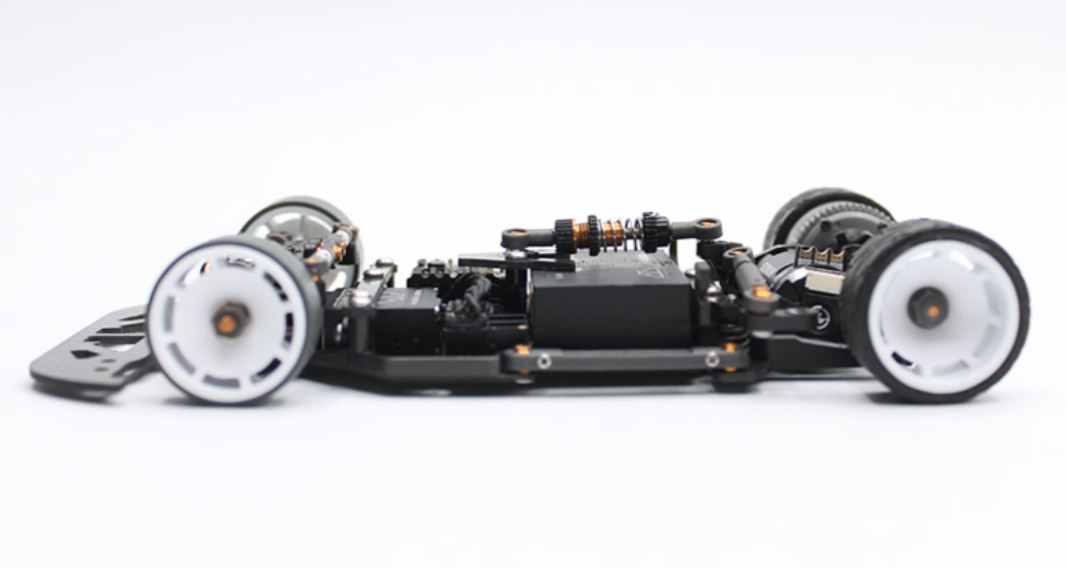

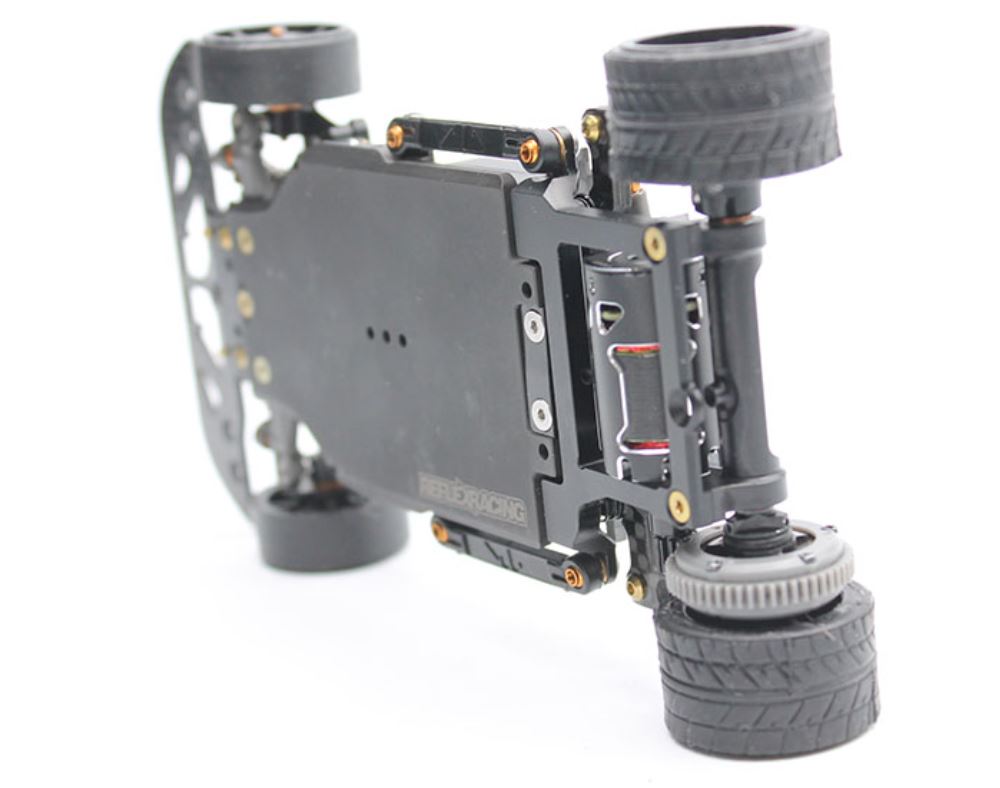

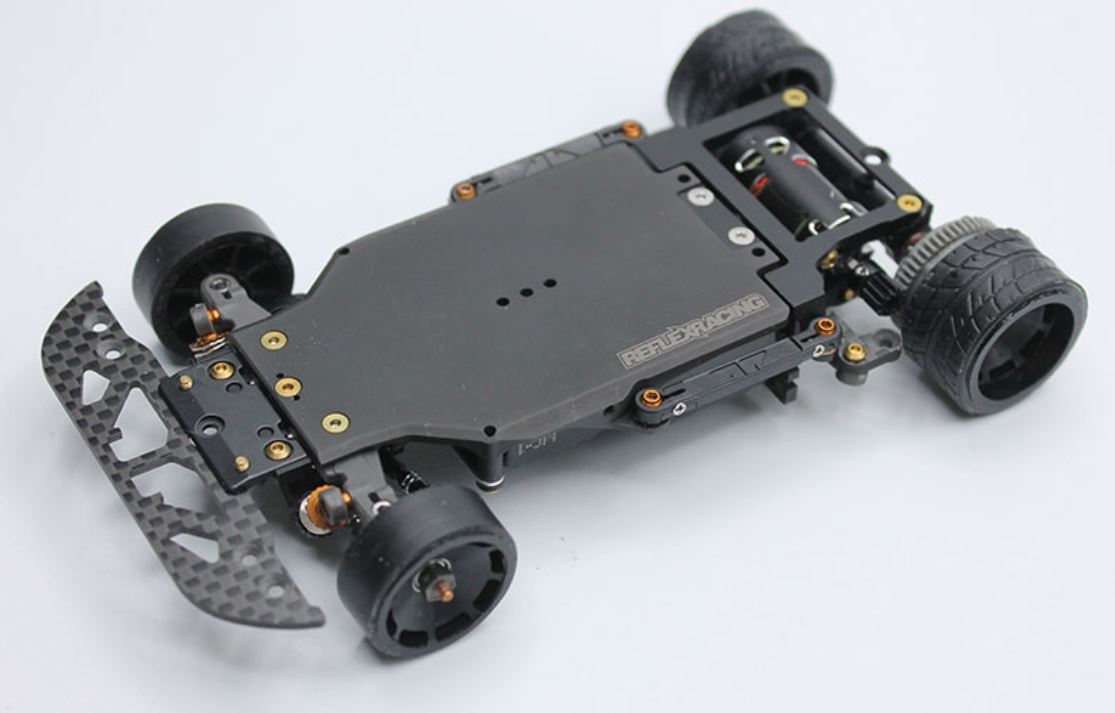

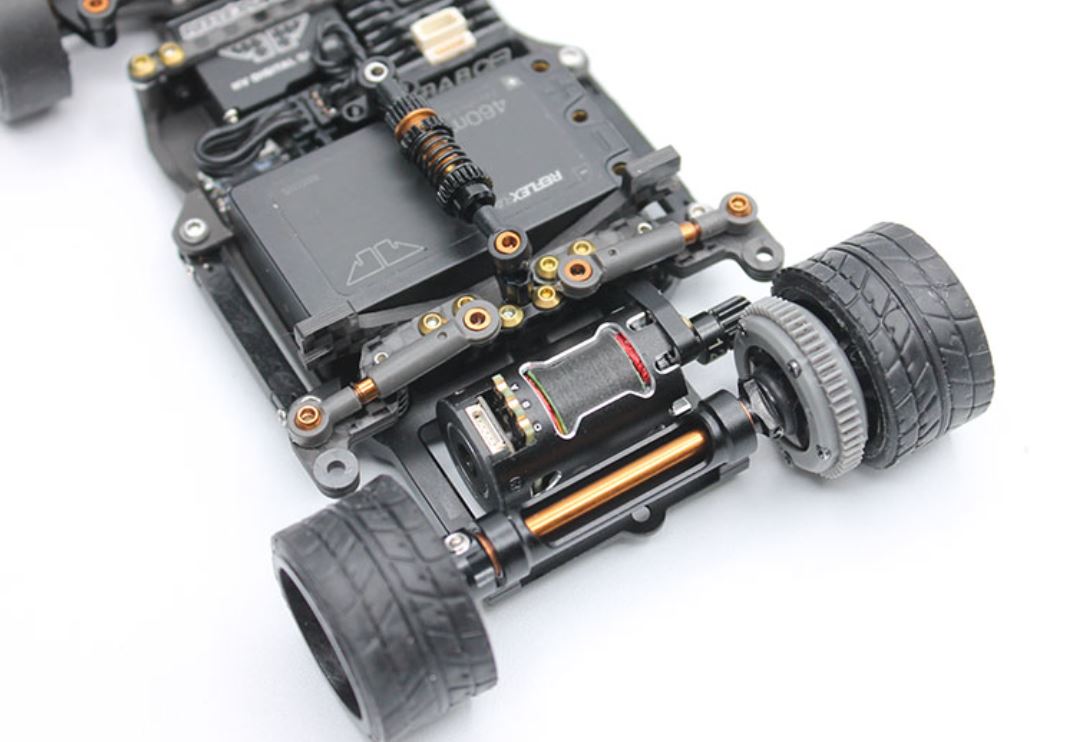

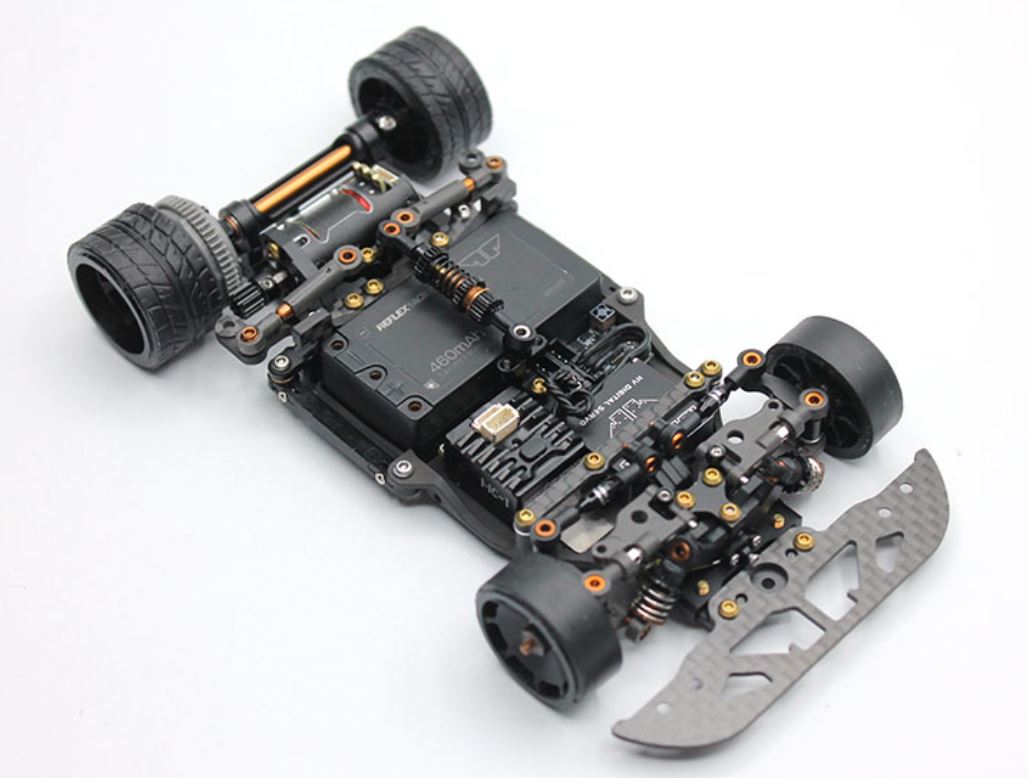

RX28SE - Champions Edition Reflex Racing RX28SE Gen 2 1/28th Scale 2WD Kit

This is the newest batch from Reflex Racing (August 2024).

The Gen2 Champions Edition kits are here! In honor of all our RX28 drivers who have won countless events worldwide, we are updating the name on our kits to the Champions Edition. The Champions edition is not a revolution, but rather an evolution of quality and attention to detail that we have meticulously worked on getting ironed out over the last year since the release of the Gen 2 cars. Better tolerances, higher-quality finishes, hard-coated everything, and extra attention to detail make the RX28 experience just a little bit better than before.

New on the SE Kits:

• -Updated chassis with holes for screw on weights
• -New Body Adjustable Body Post System (adjust body in 1mm increments)
• -Revised motor mount with locating spline for tougher assembly and less flex,
• -Updated Axle Carrier to include location for attaching rear mass damper.
• -Reflex Racing 30 Degree Rear Radial 11mm and 14mm Tires and 40 degree 8.5 and 11mm low profile slicks.
• -New Aluminum Main Damper with locking adjustment collar.

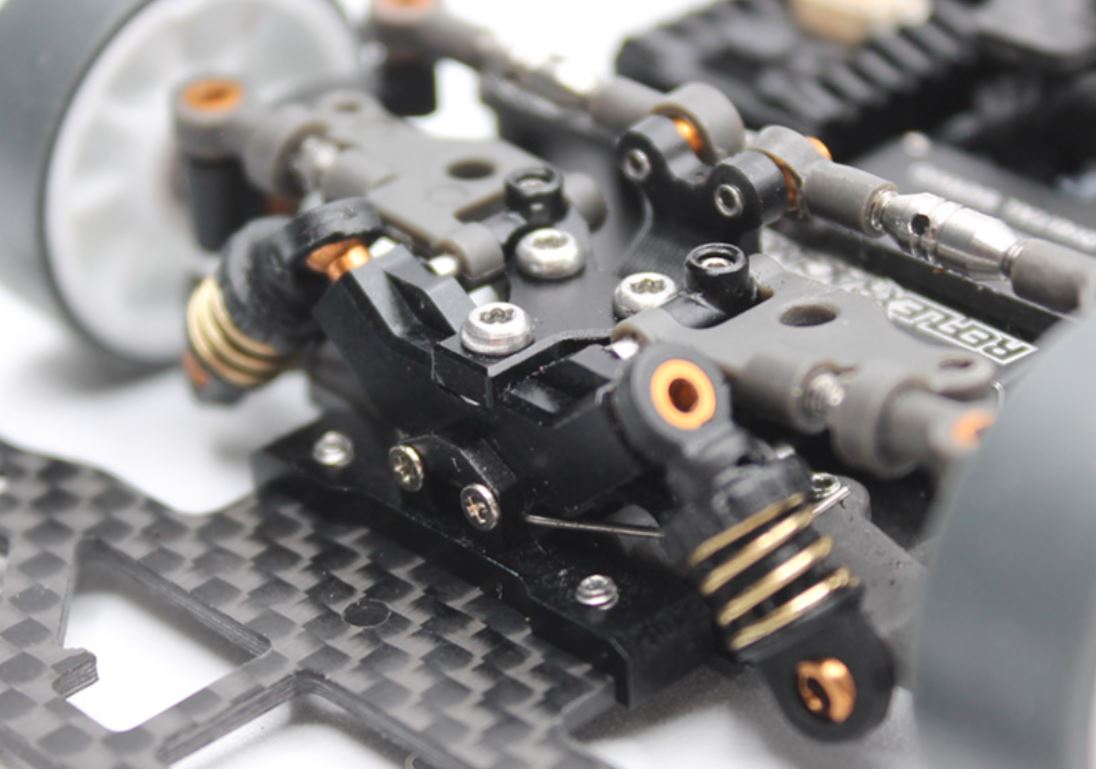

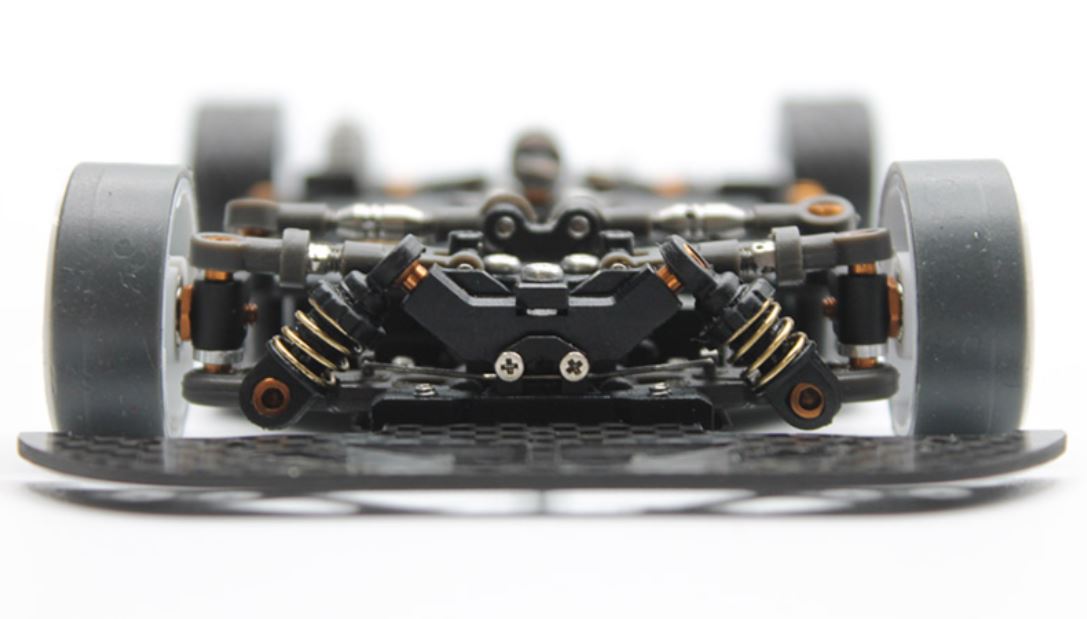

• -Updated Front Shock Adjustment collars with laser engraved pre-load dial mark
• -New Version 4 Ball Differential with Plastic Spur Gear Covers
• -Updated hard-coated 7075 T6 aluminum pivots and damper pistons

PLUS (all the items that had been Gen 2 running changes):

• -New Damper Tubes
• -New Ball Cups and Turnbuckles
• -30g Stainless Steel Chassis with Hard Coating for more durability, quality and performance vs brass

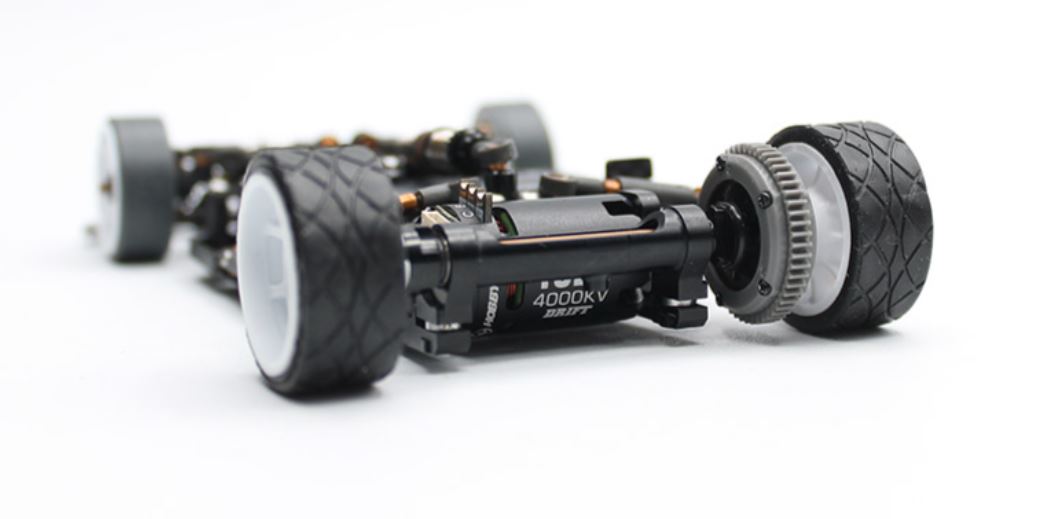

• -All New Ultra Low CG Motor Mount for increased corner speed, lighter weight and more precise ride height adjustment. It allows virtually any motor in the industry to be a drop in to the mounting position. Allows gear adjustment from 9T-17T Pinions.
• -Revised hardware throughout.
• -Reflex Racing Speed Wheels Included

Dimensions:

• -98mm Wheelbase
• -145g-170g weight RTR Depending on body and Electronics
• -69mm to 78mm Rear Track Width
• -72mm to 75mm Front Track Width

Needed to Complete:

• -Body and either front clip or front bumper
• -Wheels and Tires
• -Electronics: Motor, Lipo Battery, ESC, Receiver and Servo (Please note, the provided servo horn is designed to work with the Houston RC or Reflex Racing RRE007 Servo 20T Spline.
