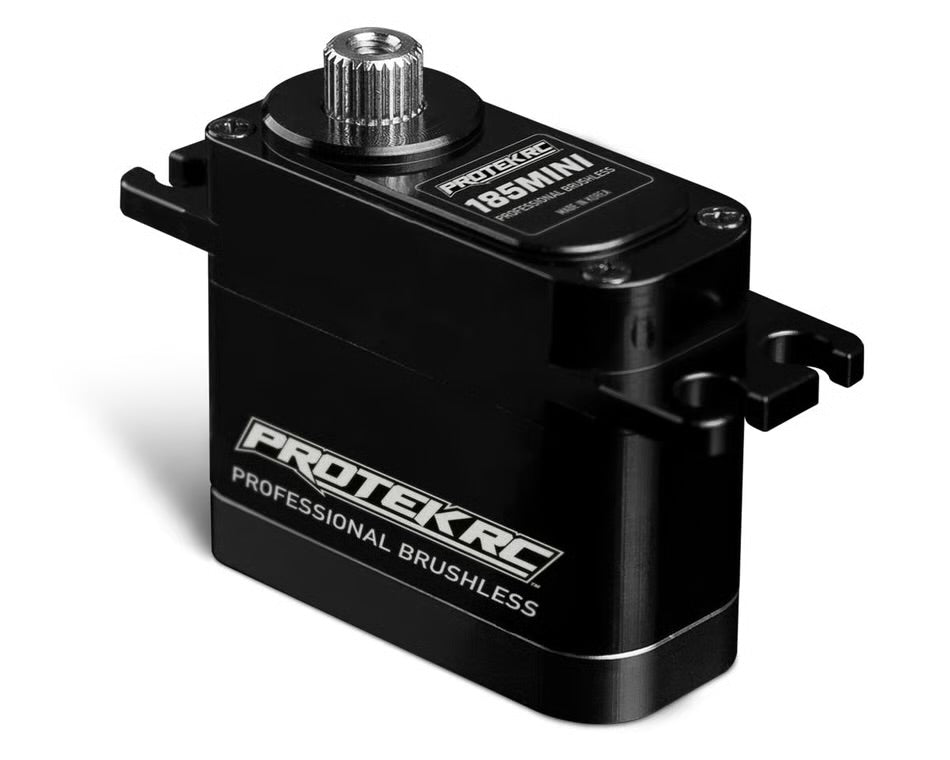

ProTek RC 185Mini Mini Racing Servo
Built for racers who demand maximum performance in a compact package, the ProTek R/C 185Mini packs brushless speed, high-torque control, and premium durability into a compact mini servo built to perform in demanding 1/12 and 1/10 pan car racing. Backed by a Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.
About the ProTek RC 185Mini Mini Servo
Compact Brushless Power
The ProTek R/C 185Mini delivers impressive mini servo performance with 186 oz-in of torque and a fast 0.06-second transit speed at 7.4V. Designed for 1/12 and 1/10 pan cars and Pro Class drag racing chassis, it provides powerful, precise control where space is limited.
Refined Racing Performance

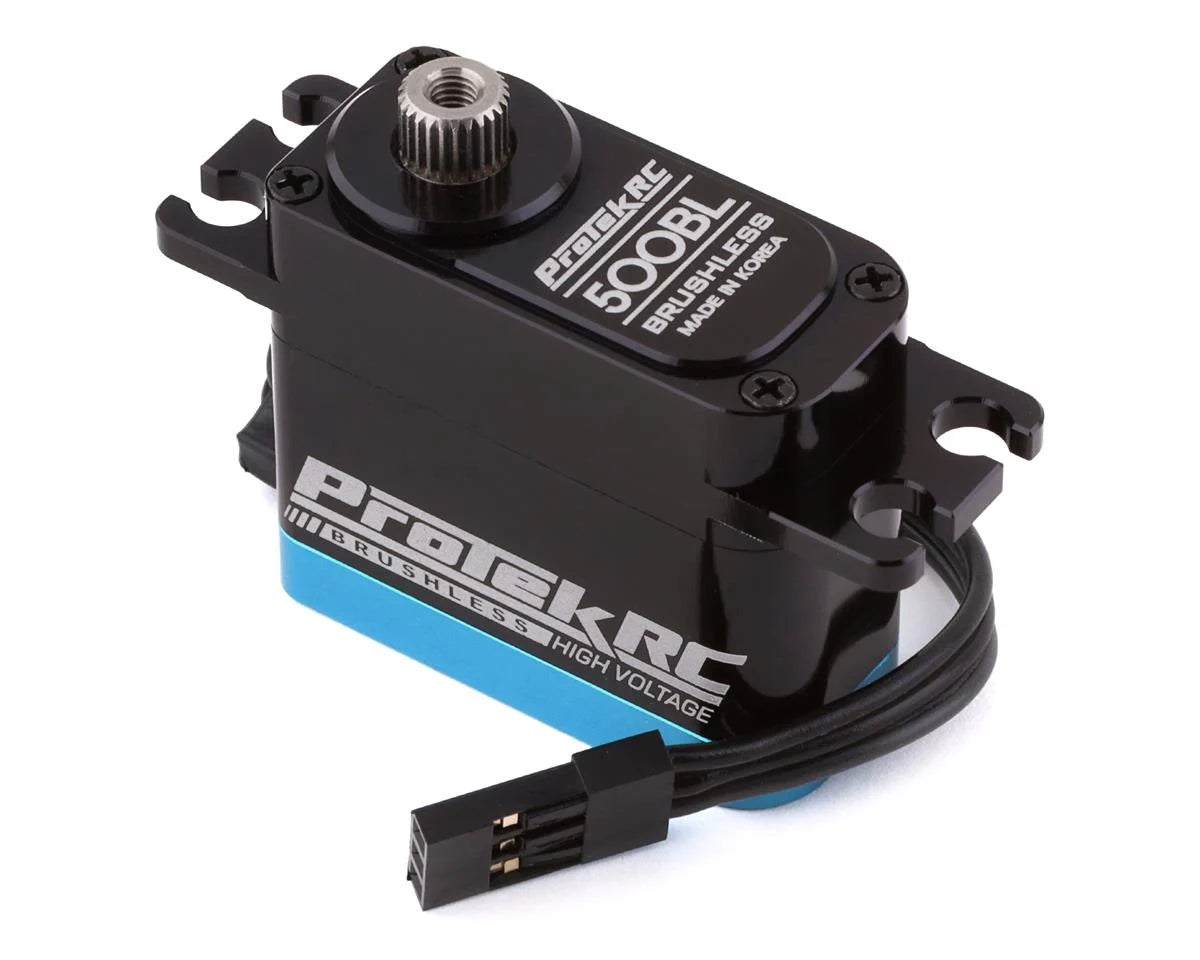

Built as a refined version of the proven and trusted ProTek R/C 500BL “Black Label” servo, the 185Mini combines advanced brushless technology with high-voltage capability for improved efficiency, longer lifespan, and consistent performance during demanding racing conditions.
Premium Race Ready Design
Featuring a full black anodized aluminum case, blue anodized bottom cover, and full metal gears, the 185Mini offers exceptional durability, precise gear alignment, and a sleek race-ready appearance. It is the ideal choice for racers needing maximum performance from a compact servo.
Features:
- Lifetime Gear Warranty Backed by Amain Hobbies
- Compact mini servo design fits most 1/12 & 1/10 pan cars
- Delivers 186 oz-in of torque at 7.4V
- Provides 0.06-second transit speed at 7.4V
- High-voltage circuitry supports powerful performance
- Full aluminum case improves durability and heat dissipation
- Full metal gears provide long-lasting strength
- Dual ball bearings deliver smooth operation
- Brushless motor technology for efficiency and longevity
- Aluminum servo ear guides provide a more rigid and secure installation
Includes:
- (1) Lifetime Gear Warranty
- (1) 185Mini High Torque Brushless Mini Servo
- Servo Hardware and Grommets
Specifications:
| Application | 1:10 & 1:12 Pan Cars |
|---|---|
| Operating Voltage | 6.0V - 7.4V |
| Operating Temperature | 14° to 140° F (-10 to +60° C) |
| Operating Speed @ 6.0V | 0.08/60° sec |
| Operating Speed @ 7.4V | 0.06/60° sec |
| Dynamic Torque @ 6.0V | 161oz-in (11.59 kg-cm) |
| Dynamic Torque @ 7.4V | 186oz-in (13.39 kg-cm) |
| Motor Type | High Efficiency Coreless Motor |
| Output Shaft | 25T |
| Gears | Metal w/Lifetime Gear Warranty |
| Weight | 1.48oz (42g) |
| Pulse/Frequency | 1520s / 333hz |
| Dimensions | 1.3x0.21x0.61in (34x30.80x15.50mm) |
| Length (Bottom to Mount) | 0.83in (21.30mm) |
*Tech Note: If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.
*Tech Note: Modification may be required for drag applications.
