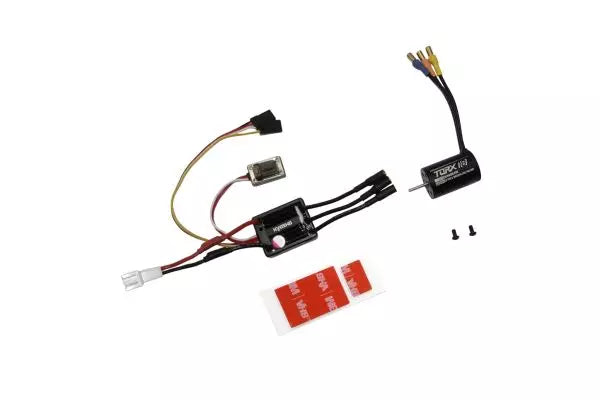

KYOSHO SPEED HOUSE Hanging On Racer Brushless Combo Set - GPW23
KYOSHO SPEED HOUSE Hanging On Racer Brushless Combo Set - GPW23
Description
Brushless combo set for the Hang-On Racer series.
Powerful brushless torque makes it easier to bring the bike upright when exiting corners, improving handling. Top speed is also increased by approximately 1.4 times compared to the standard brushed motor included with the kit.
※For the gears inside the gearbox, we recommend combining the GPW3C reinforced pinion (1.89mm/with wrench screw/3pcs) with the GP109B gear/sprocket (Hang-On Racer).
Technical Data
※This technical data shows the performance of the ESC and motor.
Not all of them are compatible with the Hang On Racer.
ESC
KYOSHO SPEED HOUSE BRAINZ 18
Input Voltage: Ni-MH Battery: 6〜9 cell (7.2V ~ 10.8V) or Lipo Battery: 2〜3 cell (7.4V〜11.1V)
Size: 33.4mm(L) x 26.8mm(W) x 15.1mm(H)
Continuous maximum current: 30(A)
BEC Output: 6V / 2A
Weight: 38.5g
Recommended motor size: 270–390 class (up to 8000KV with 2S LiPo / up to 4500KV with 3S LiPo)
Protection function: Low voltage cutoff function / Overheating protection function
Motor
KYOSHO SPEED HOUSE TORX 18
KV: 5000(rpm/V)
Input Voltage: Ni-MH Battery: 6〜9 cell (7.2V〜10.8V) or Lipo Battery: 2〜3 cell (7.4V〜11.1V)
Weight: 42g
