30120500 QUICRUN Fusion Pro ELITE (2in1 FOC System) - Hobbywing Brushless System for Crawler - *New 2025*

New for 2025 (November) from Hobbywing, the Ultra-Compact Fusion Pro! The Hobbywing QuicRun Fusion Pro Elite FOC 2-in-1 ESC & Motor System combines powerful performance, compact design, and advanced control into one streamlined package for 1/10-scale crawlers. Measuring just 48.5mm in length, it’s smaller than previous Fusion Pro models and fits easily into most crawler chassis, allowing for clean and organized wiring. Built with IP67-rated protection, this system performs reliably in all-weather conditions—whether you’re tackling rocky trails, muddy streams, or sandy climbs.

Ultra-Compact Design

The Fusion Pro Elite features a shortened, integrated design that simplifies installation and reduces clutter. At 9.5mm shorter than the Pro Standard version and 1.3mm shorter than the AXE 540, it provides more space in the vehicle while maintaining a clean, streamlined wiring layout. This compact footprint allows for better component placement, improving balance and overall build aesthetics.

Advanced FOC Performance

Equipped with Field-Oriented Control (FOC) driving mode, the Fusion Pro Elite delivers superior low-speed torque and smooth throttle response, outperforming traditional brushless systems. It offers precise control for technical crawling and provides an enhanced feel often preferred over brushed setups. The system runs quietly and efficiently, minimizing heat buildup and extending your runtime on the trail.

Smart Features and Versatile Control

The Fusion Pro Elite is designed with intelligent torque output and speed closed-loop control for precision in challenging conditions. It includes an adjustable active drag brake for reliable holding power on steep inclines. The built-in switch-mode BEC supports continuous/peak currents up to 5A with adjustable voltages of 6V, 7.4V, or 8.4V, making it ideal for high-torque, high-voltage servos. Real-time parameter adjustments via the transmitter’s AUX channel and compatibility with LED and LCD Program Box Pro/G2 ensure fine-tuned performance.

• Featuring an ultra-short integrated design with a length of just 48.5 mm, this motor is 9.5 mm shorter than the Pro Standard version and 1.3 mm shorter than the AXE 540. It fits most 10th-scale crawler chassis on the market, allowing for cleaner, more streamlined wiring layouts.
• FOC (Field-Oriented Control) Driving Mode: The FOC driving mode enhances the power system of rock crawlers, delivering strong low-speed torque. This provides superior performance compared to standard brushless setups and is even preferred over brushed setups for overall feel.
• The system offers high efficiency, reduced heat, and extended runtime, with the motor running quietly and smoothly.
• The entire system has an IP67 protection grade, enabling operation in all conditions.
• Intelligent torque output and speed closed-loop control ensure precise handling.
• Active drag brake force adjustment provides superior holding power on inclines.
• The strong built-in switch-mode BEC supports continuous/peak current up to 5A and adjustable voltages of 6V, 7.4V, or 8.4V, capable of driving high-torque and high-voltage servos.
• Real-time parameter adjustments are possible using the transmitter’s AUX channel.
• Multiple protection functions include battery low-voltage protection, overheat protection, throttle loss protection, and lock-up protection.

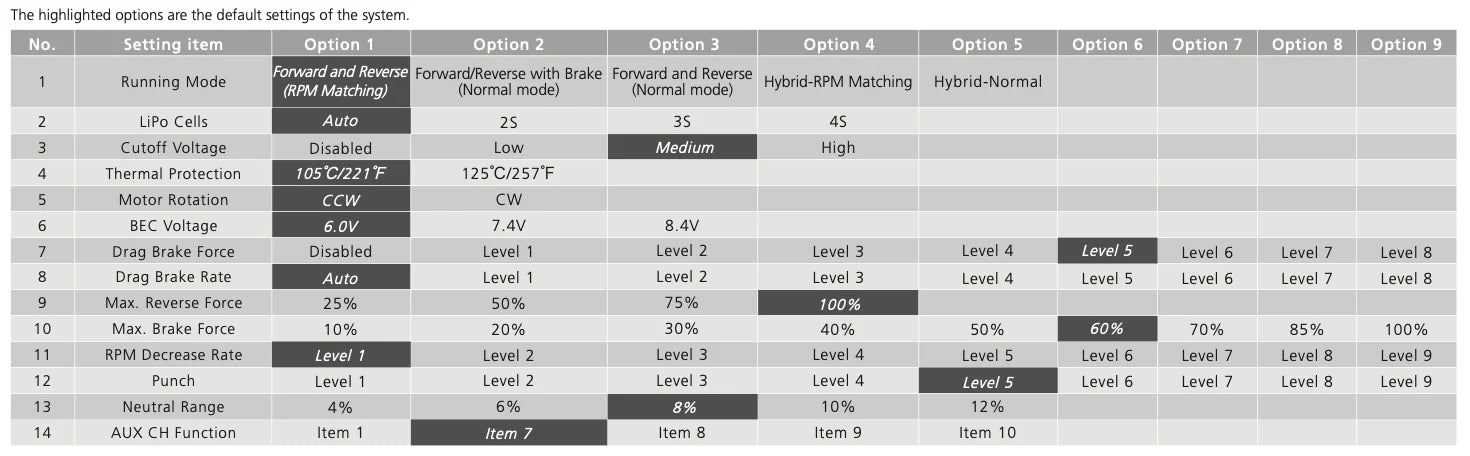

• The system supports LED and LCD Program Box Pro/G2 for convenient ESC parameter settings..

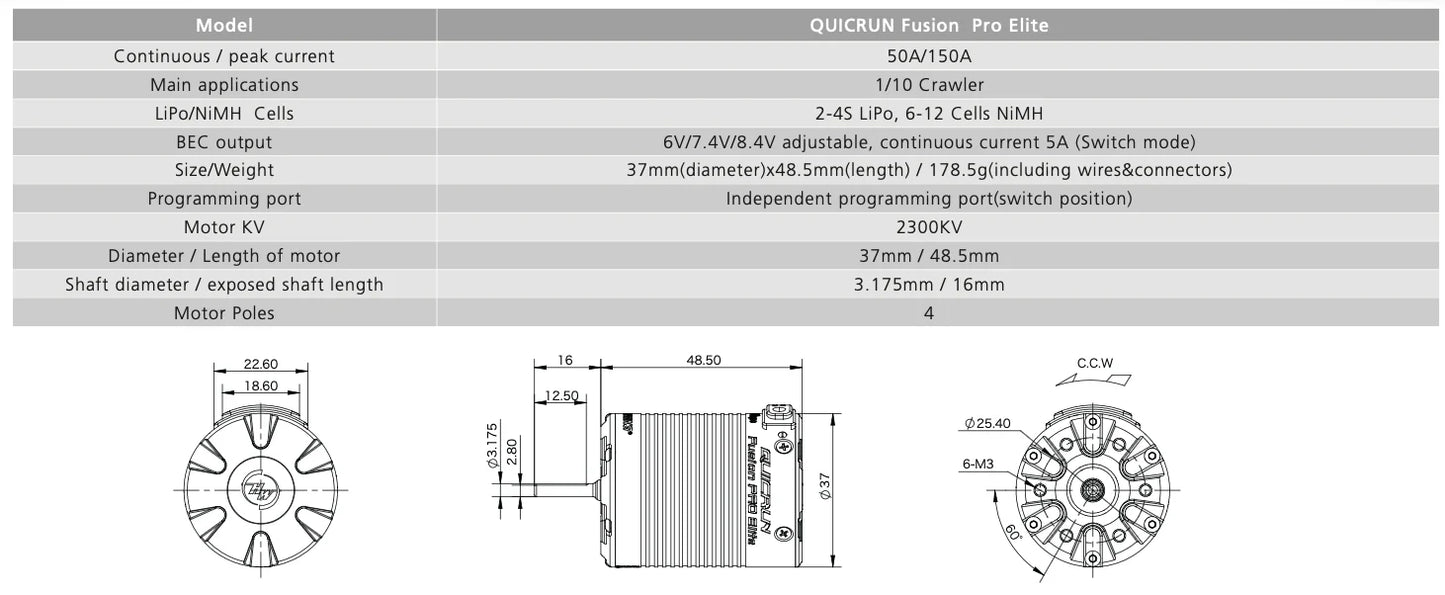

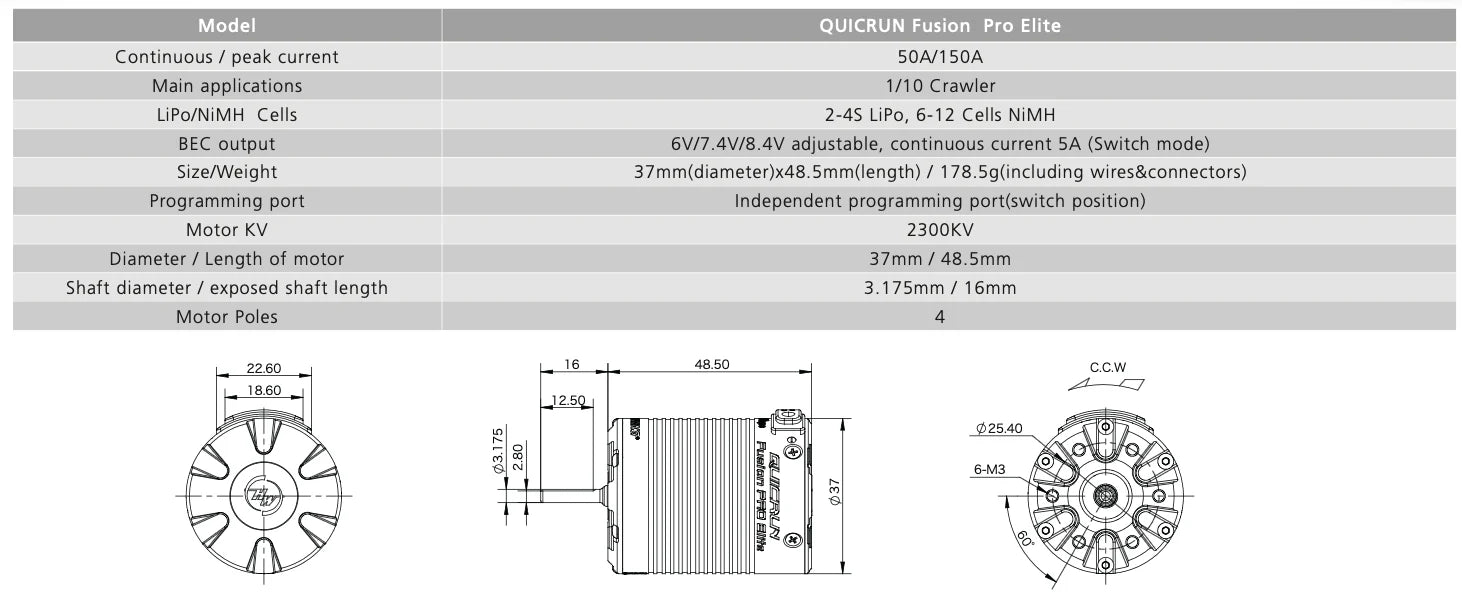

Motor Kv: 2300Kv

Continuous Current: 50A
Shaft Diameter: 3.175mm

Peak Current: 150A

Input Voltage: 2-4S LiPo/6-12 Cell NiMH

BEC Output: 6V/7.4V/8.4B=V adjustable, 5A continuous (switch mode)

Input Wires: 14awg, 330mm long

Input Connectors: XT60 (factory installed)

Port Programming: Independent programing interface (switch position)

Size: 37x48mm

Weight: 178g w/wires

• 1x FOC motor w/ built-in ESC
• Factory-installed XT60 plug
• 1x Decal and Manual
• 1x Heatshrink kit, double-sided tape, and zip ties.
