30112005 Hobbywing XERUN XR10 Justock G3S

30112005 Hobbywing XERUN XR10 Justock G3S

Regular price $63.00 USD
Regular price Sale price $63.00 USD
Sale Sold out
Shipping calculated at checkout.

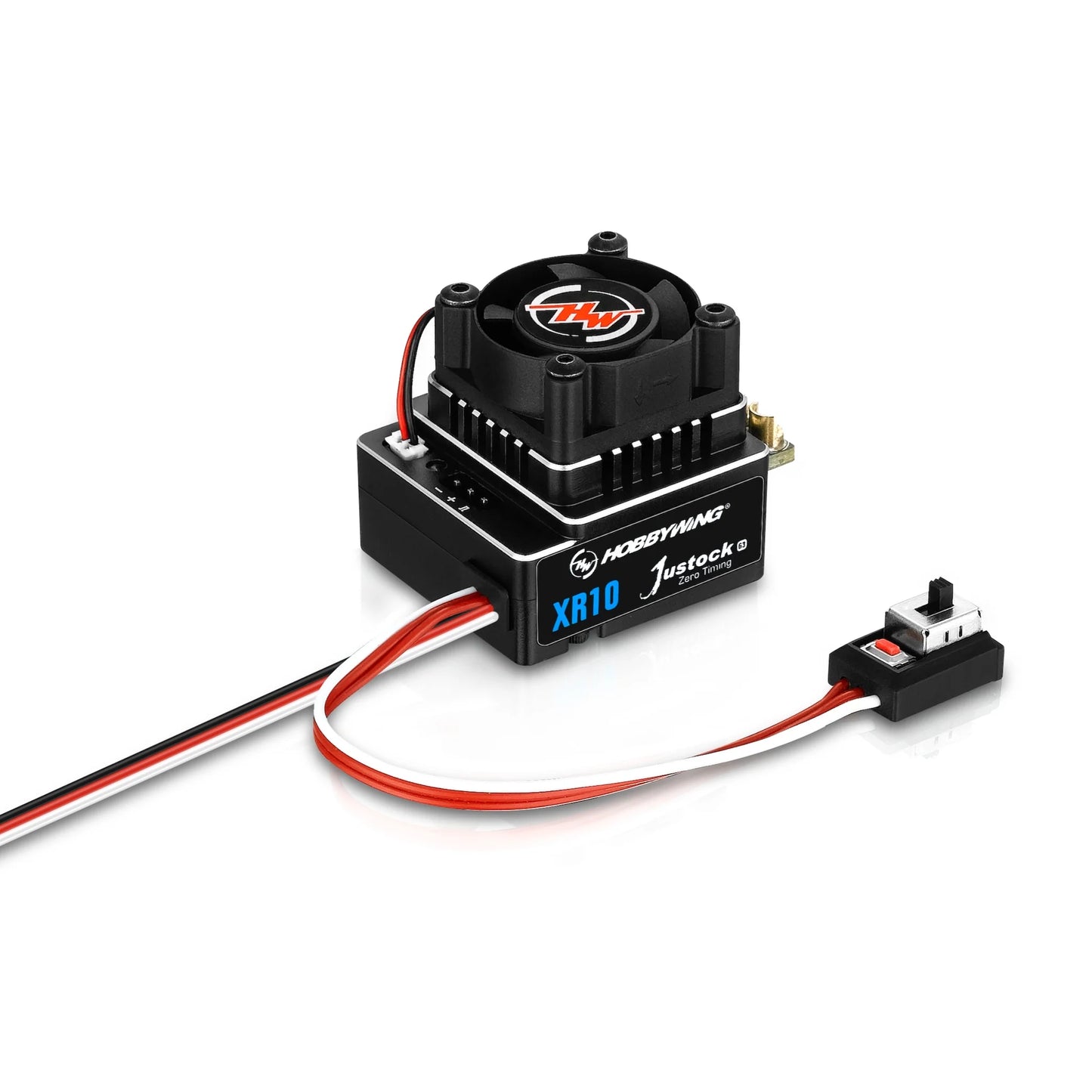

The Xerun XR10 Justock G3S 1/10 Sensored Brushless ESC is a versatile and reliable electronic speed controller designed for competitive RC racing. It features built-in polarity protection to prevent damage from reverse battery connections, ensuring system safety. With programmability options via OTA Wireless module or 3in1 program box, users can easily customize settings to suit their racing preferences. Additionally, its RPM speed limit function offers flexibility with up to 6 different speed selections, catering to various competition requirements worldwide. The ESC also incorporates a built-in capacitor module, eliminating the need for external capacitors and saving space.


Features:

  • Built-in polarity protection. The XR10 Justock has integrated MOSFET's that if the battery terminals are connected in reverse, the MOSFET will be reverse-biased and will not allow current to flow through the system
  • Programmable via OTA Wireless module or 3in1 program box
  • Built-in capacitor module eliminates the need for external capacitors and unwanted space
  • RPM speed limit function supports up to 6 different speed, RPM, selections to meet the needs and demands of various competitions in the world (Set through OTA module or 3in1 box)
  • Internal ESC timing has been set to 0 degrees and cannot be adjusted for stock racing
  • Built-in BEC can support a maximum output current of up to 8A. Output voltage can be set between 6V or 7.4V
  • Calibration or performing a factory-reset can be achieved by using this SET button. Simple and easy to use
  • Supports both CCW (counterclockwise) and CW (clockwise) motor directions
  • Protection functions include: reverse polarity, battery voltage, ESC temperature, motor temperature, signal lost and locked rotor protection
  • ESC includes the Freewheeling setting allowing for lower ESC temps enhancing drivability through corners
  • Built-in data logging for post-run reports

Specifications:

  • Continuous Current: 60A
  • Burst Current: 380A
  • Battery: 2S Lipo (Only 2S)
  • Built-in BEC: 6V/7.4V @ 4A(Switch-mode)
  • ESC programming: Independent programming port
  • Motor Supported: Sensor and sensorless brushless motor
  • Motor Limit: 10.5T, or greater,3650 Motor
  • Application: 1/10, 1/12 On-road and Off-road
  • Cooling Fan: Powered by BEC
  • Size: 40.9x33.9x32.1mm (LxWxH)
  • Weight: 75.4g (Including weight of wire)
  • ROAR Approval: Yes

Includes:

  • (1) Justock G3SS ESC
  • (1) 5V cooling fan
