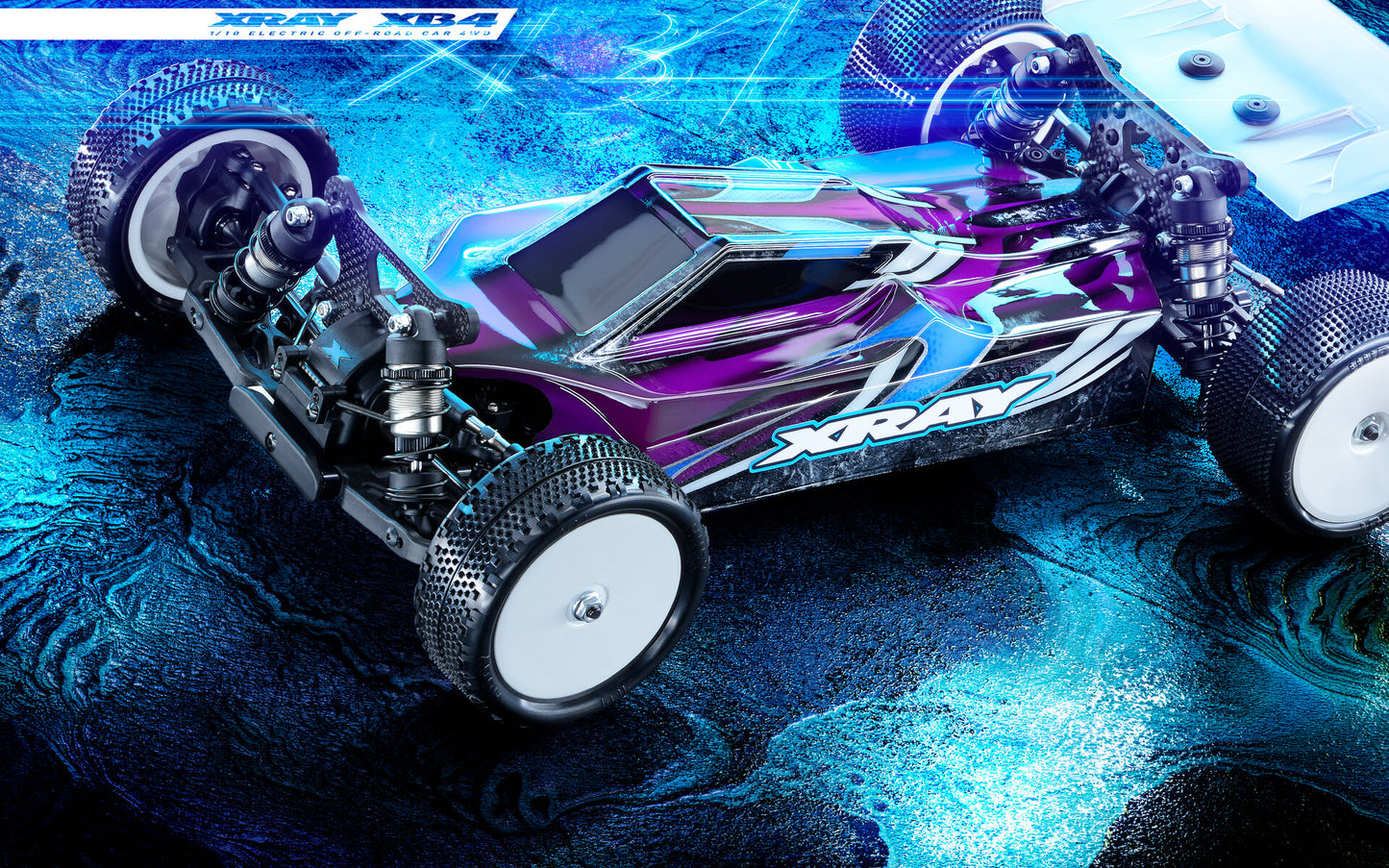

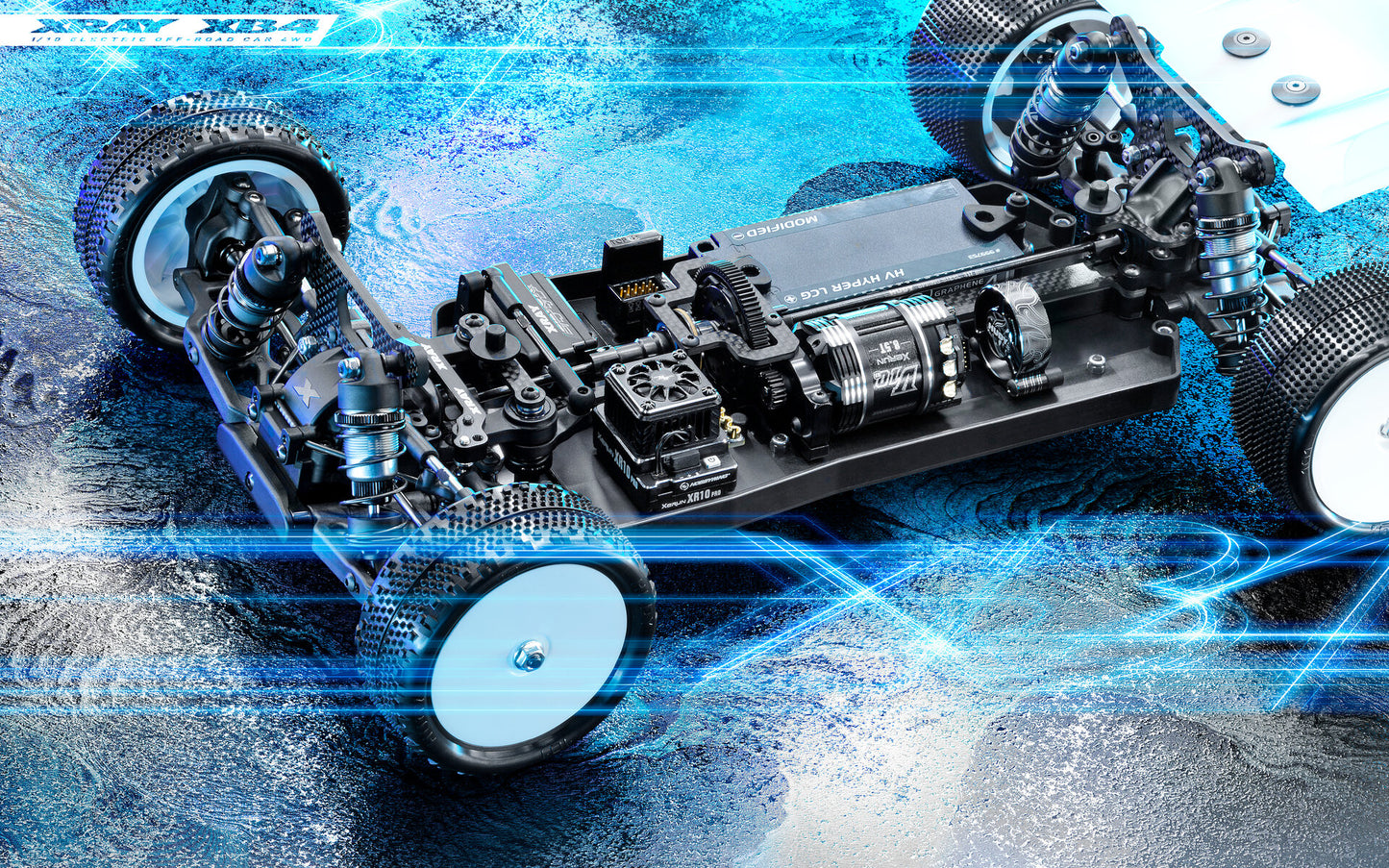

Xray XB4C 2024 - 4WD 1/10 Electric OffRoad

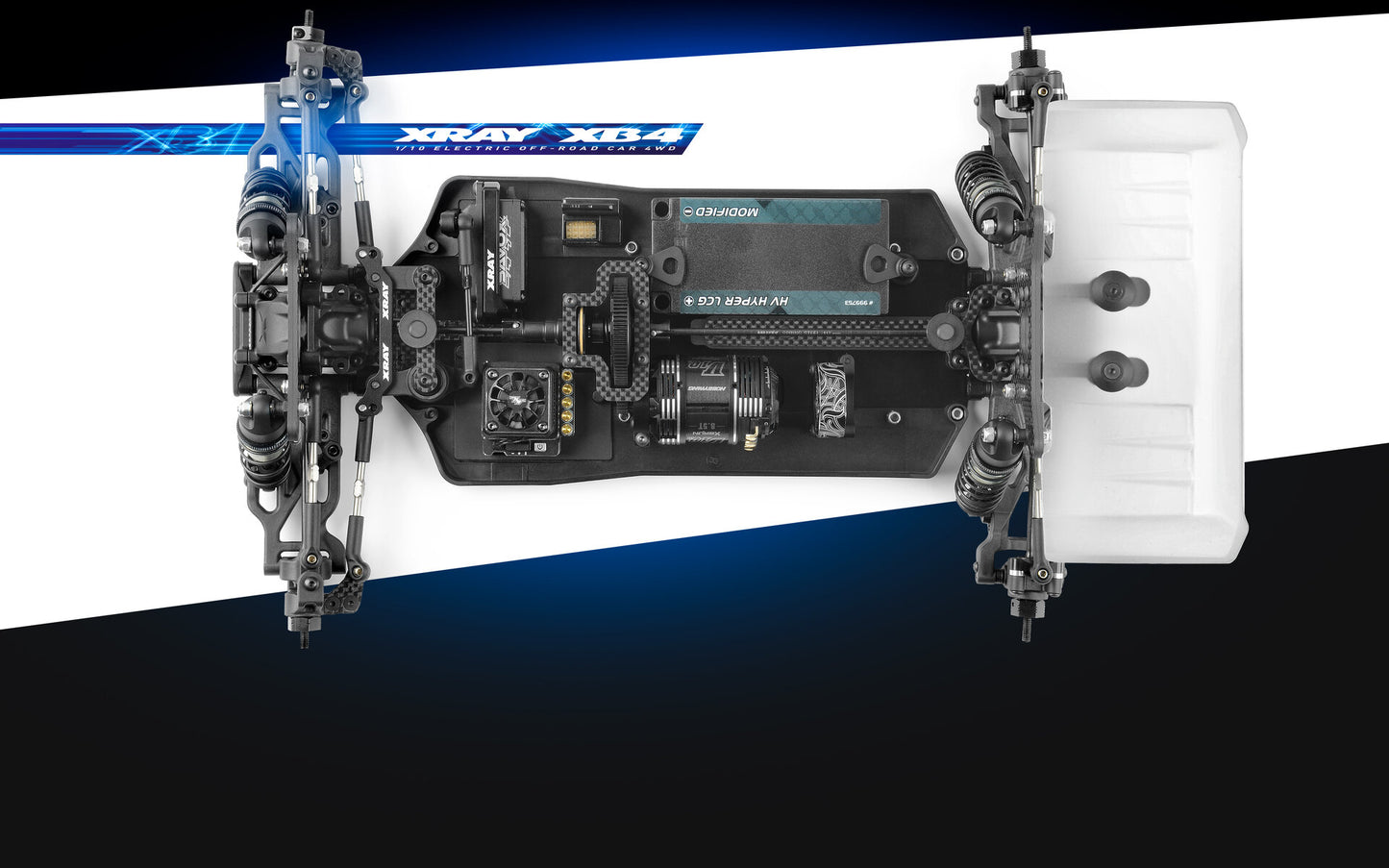

• New chassis and aligned front bumper improve ground clearance
• 3mm wider front suspension arm holders (A and B) increase stability & cornering speed
• Wide rear suspension arm holders (C and D) included to increase stability & cornering speed
• Longer front 84mm drive shafts accommodate wider geometry from the new arm holders
• Graphite front lower suspension arms in XB4C improve high traction performance
• Hard front lower suspension arms in XB4D increase traction
• Graphite C-hubs improve response & consistency
• New front steering blocks with external adjustable carbon steering plates for extended tuning options
• Steering blocks moulded from graphite material for improved response & consistency
• 2 dots front carbon steering plates for balanced handling characteristics
• Larger 3.5mm turnbuckles for improved durability
• Larger 5.4mm ball ends & composite ball joints for improved durability & reduced friction
• Redesigned front and rear anti-roll bar geometry with super easy adjustment from top
• 1.8mm F&R (XB4C) and 1.2/1.3mm F/R (XB4D)  shorter anti-roll bars improve handling
• Shorter 113mm rear central dogbone drive shaft in XB4D for short wheelbase configuration suggested for lower traction condition
• Front 2 dots lower carbon shock tower for a lower CG & improved cornering speed
• Rear 3 dots lower carbon shock tower for a lower CG & improved cornering speed
• Shorter shock bodies & shock shafts in front & rear match new lowered shock tower geometry and lower CG
• New +2mm & +4mm shock ball joints for extended droop setting possibilities for all different track conditions
• New -2mm & -4mm composite spring collars with cleaning holes for expanded ride height adjustments
• Rear lower alu shock adapters mounted on lower arms improve handling on carpet (XB4C only)
• New shorter rear lower suspension arms with 3 shock mounting positions.
• Graphite rear lower suspension arms in XB4C improve high traction performance
• Hard rear lower suspension arms in XB4D increase traction
• Alu steering plate increases strength & improves steering response on high traction (XB4C)
• Graphite composite steering plate improves handling on low traction (XB4D)
• Alu Monoblock servo holder improves strength, different flex characteristics & durability

Release Date: November 22nd (as per Xray)
